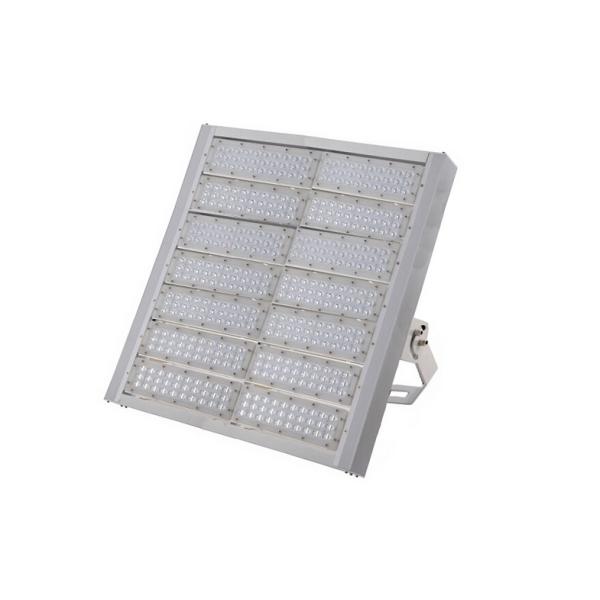

400W CE Rohs Approved led street light with CREE LED & 3 Years
Warranty, 6036 aluminum heat sink
Descriptions of Product:
Using only the highest quality components, the Lsleds ® LED Flood
Light is designed for industrial applications where reliability and
performance are critical as the bulb maintenance is difficult or
impossible, not to say the high cost.
Every component of the Bellaid LED Flood Light has been carefully
engineered to provide the most reliable performance and bring
across many benefits of utilizing solid state lighting technology
in industrial applications.
LED Flood Light is rated IP65 with further option to upgrade to
IP67, suitable for both indoor and outdoor use.
Specification sheet:
Specification |
Power: | 400w |
Material: | 6063 aluminum alloy Heat sink + PC lens |
Type Of Chip: | power LED |
Brand Of Chip: | CREE |
Luminous: | 36000-38000 LM |
Color Temperature: | 2600 ~ 6500K |
CRI: | Ra ≥ 75 |
Beam Angle: | 90° 120° as usual |
Total Harmonic Distortion(THD): | <20% |
PF: | >0.95-98 |
Working Life: | ≥ 50000 hrs |
Warranty: | 5 years |
Dimensions |
Finishing Color: | Black;Gray |
Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
SHAPE: | Rectangle |
Weight: | 17 Kg |
Size: | 485*628*65mm |
Mount bracket | Angle can be ajustable |
Package Size: | box size: 550*680*100mm
1 pc/carton; CBM:0.038m³ |
Work Environment |
Input Voltage: | AC90-305v,47-63Hz |
Operating Temperature: | -40~ + 50°C |
Application |
Application: | Used for Gymnasiums,yards,advertising boards,building,lawns,garden designs |
Recommend mounting height: | 30-40m |
Characteristics:
1.Lamp housing is high-quality aluminum with power coating or
anodizing surface , ip65 waterproof and dustproof.
2.Low heat output.
3.Each module is rotable for differ beam angle requirements.
4.Imported high lumens high power LED chip 130lm/w with
constant-current power supply, ensure the stable performance ,light
source lifespan 50000 hours
5.High quality high transparency optics lens, beam angle 25 ° ,35 °
45 ° 60 ° ,90 ° , 120° options
6. RGB and dimmable is workable.
7.Light effect distance >30 Meters
8.According to actual situation of application Voltage options
AC90-305
Main Advantages:
Private tooling and compact design
Original Nichia LED from Japan and Mean Well driver from Taiwan.
LED efficacy>150lm/W, system efficacy>115lm/W.
IP65 weatherproof.
Elegant metal nameplate on product.
Multiple installations: loop hanging, fixed/adjustable surface
mount.
Dimming, Dali control, Microwave motion sensor and Daylight
harvesting, Zigbee wireless control functions available.
5 years warranty for 200w/300w/400w/500w led flood light
Application
Widely used in tunnel , exhibtion hall, parking lot, stadium,
billboards, part, etc .
Delivery detail:
1.1pcs/box//carton.
2.We ship samples by UPS/DHL/FEDEX/TNT/EMS express, sample making
time 1-3days.
3.it takes 3~ 5 days to arrive, or by air cargo which takes about
one week .
4.Order proucing time is 7-15days.Large quantity will be shipped by
sea which takes Longer time to arrive,depending on your actual
requirements.
5. And we can deliver the goods to your company from China with
very cheap freight.
by sea,door to door .Freight covering all cost from our factory to
your warehouse. You don't need do nothing ,just waiting for the
goods. Save your money and time.
